Fiber Optics
Cold light source CLS2
| Cold light source CLS 2 |
| Input voltage |
220V A/C 50 HZ |
| Lamp Used |
15V 150 Watt |
| Dimensions |
225x 220 x 135 MM LxBxH |
| Net Weight |
5.6 Kgs |
| Metal braided Fiber Optics Cables |
| Length |
1/2/3 Meters |
| Fiber bundle |
Diameter 4.5 mm |
Cold light source CLS2 is a specially designed powerful light source which provides cool, portable & flexible light for industrial visual Inspection use . It is cooled by an internal fan & halogen lamp is easily replaceable . A port is provided on the front of the box for inserting flexible fiber optics cable. Cold light & fiber optics cables are useful for visual inspection of a variety of components by providing high level of clear & cool light, It helps in reducing eye strain & eye fatigue considerably
Rigid endoscopes

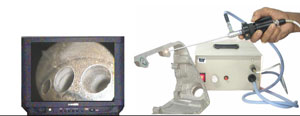

For visual inspection of cross hole burrs, deep holes & precession components endoscopes are widely used in industries,
CCD camera with a focusable coupling can be attached to all types of endoscopes for video inspection of components on TV, With computer interface images can be viewed on computer monitor, photographed instantly & saved as traceable records. Cold light for the endoscopes is provided by cold light source CLS2 & flexible fiber optics cable.
| Diameter |
4/6/8/10 mm |
| Length |
175/300 mm |
| View angle |
0/30/70 Degrees |
| Illumination |
Integral Fiber light |
| CCD Camera |
Can be attached |
Flexible endoscopes
Flexible endoscopes are used for inspection of intricate water passages in castings like engine blocks & cylinder heads , odd shaped pipes & manifolds etc. External camera with focusing coupling can be attached & computer interfacing is also possible.
| Diameter 4mm to 10 mm |
| Length |
1 to 3 meters |
| Flexible |
with or without articulation |
| Camera |
Can be attached Externally |
| Illumination Integral fiber light Cable |
Portable Video Borescope
This completely portable & handy video Borescope has camera & two white light LEDs at its tip which provide controlled illumination. The metal cable is of stay lock type & can take & hold any odd shape. Image is viewed on the Inbuilt TV on the handle. It can be connected to an external TV or interfaced with computer.
| Camera diameter |
10mm |
Length |
114 cms |
| Metal tube length |
88 cms |
Bending radius |
4.5 cms |
| Focusing distance |
3 to 6 cms |
Lens |
F 2.8 |
| CMOS Camera |
320 x 240 pixels |
Sensitivity |
0.7 V (Lux sec) |
| Color Mosaic |
RGB Bayer pattern |
White balance |
Automatic |
| Video Format |
NTSC Composite |
Illumination |
By two white LEDs |
| Handler end AVI port |
NTSC signal out |
Powered by |
4 x 1.5V AA Batteries |
| Net Weight |
370 gms |
Built in LCD TV |
6.1 CM / 2.4" |
Computer interface attachment
Measuring Software
- User friendly Licensed software
- Calibration Facility
- Measurement of Distance, Angle, Circle properties (Radius), Straightness, Parallelism, Perpendicularity
- Full fledge Help Facility
- SPC (statistical process control), Cause effect Pareto Analysis, X Chart, R Chart, X Bar Chart, Histogram, Cause effect chart, Process statistics & SPC Help
- Cross hair tool, Rectangle tool, Circle & double line tool
- Line width, type & color change, Annotation & Edit Mode
- DRO function, Cartesian & also Polar Coordinates
- Rotatable Image & also Rotatable coordinates
- Report generation & Printing
